TE-90L Tilting-Type Explosion-Proof Solvent Recovery Machine | 90L Feed Capacity

In recent years, increasingly stringent global regulations on VOC (Volatile Organic Compound) emissions, rising virgin solvent prices, and high hazardous waste disposal costs have driven industries such as coatings, printing, automotive refinishing, and electronics manufacturing to adopt on-site solvent recovery equipment. Circular economy policies implemented in Europe, Southeast Asia, and North America have further compelled manufacturers to reduce solvent waste emissions and lower their carbon footprints. On-site distillation recovery has emerged as a standard compliance solution, increasingly replacing the costly practice of outsourcing waste solvent disposal to third parties.

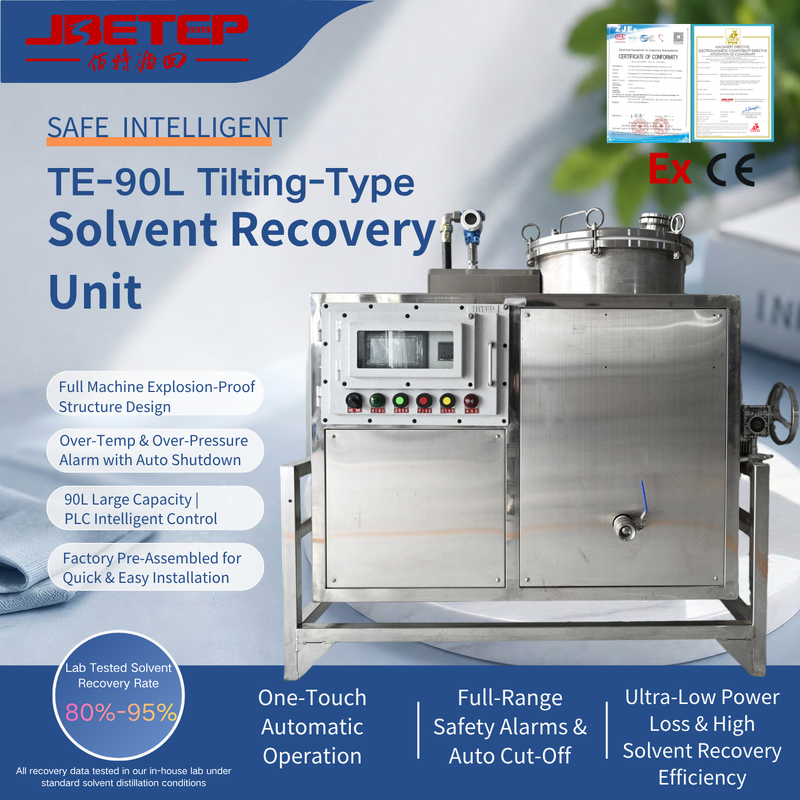

The JBETT TE-90L is a compact, tilt-discharge, explosion-proof solvent recovery machine specifically designed for small-to-medium-sized coating workshops, printing plants, automotive refinishing shops, and electronics component manufacturers. Utilizing indirect thermal oil distillation technology, the unit recovers contaminated spray gun cleaners, thinners, isopropyl alcohol (IPA), xylene, methyl ethyl ketone (MEK), and mixed cleaning solvents, achieving recovery rates of 80%-95% as verified by laboratory testing. Featuring a fully pre-assembled design, the unit allows for rapid on-site installation without complex assembly procedures; it is also equipped with a comprehensive safety interlock and alarm system that effectively mitigates the risks of fire and overheating during the distillation of flammable solvents.

• High Recovery Rate, Reduced Raw Material Costs: Internal laboratory testing confirms recovery rates of 80%-95%; the recovered solvent is clear and impurity-free, suitable for direct use in spraying, ink formulation, and parts cleaning. Procurement costs for virgin solvent can be cut by up to 80%, while hazardous waste generation drops by over 90%, significantly lowering waste disposal expenses.
• Explosion-Proof Design for Flammable Solvent Applications: All electrical control components are explosion-proof certified and comply with Ex or CE standards. The system utilizes no open-flame heat sources, eliminating the risk of solvent vapor ignition.
• Comprehensive Safety System with Multiple Alarms and Auto-Shutdown: Features dual visual and audible alarms for over-temperature, over-pressure, abnormal liquid levels, and circuit faults. Upon detecting anomalies, the unit automatically cuts off heating and halts operation, ensuring all-around safety.
• Factory Pre-assembly for Easy On-Site Installation: Fully assembled at the JBETT factory prior to shipment. Customers need only connect power and cooling lines; no specialized installation team is required, and commissioning can be completed within one day.
• Ultra-Low Energy Consumption and Intelligent PLC Control: An optimized heat exchange structure minimizes energy loss; PID staged temperature control technology supports one-touch automatic operation and scheduled shutdowns, effectively reducing standby energy waste.

1. Feeding: Pour waste solvent mixed with paint residue, ink, resin into 90L stainless distillation tank; optional pneumatic feed pump for automatic feeding.
2. Indirect Thermal Oil Heating: Closed thermal oil circulation heats the tank indirectly, avoid local overheating of flammable solvent.
3. Vaporization & Separation: Clean solvent vapor rises, heavy paint sludge, resin impurities stay in the tank bottom.
4. Condensation & Purification: Solvent vapor enters high-efficiency copper condenser, cooled into transparent pure liquid solvent.
5. Collection & Residue Discharge: Recovered clean solvent flows to storage barrel; concentrated solid residue left in tank for centralized disposal via tilting design.

All control panels, temperature sensors, motors, switches adopt standard Ex explosion-proof parts. Entire machine sealed vapor circulation system to prevent solvent volatile leakage, meet hazardous area production requirements of coating, printing factories.

Independent temperature & pressure dual control loops. Once temperature exceeds set threshold or internal pressure rises abnormally, red warning light + buzzer activate simultaneously, heating system cuts off instantly to prevent safety accidents. Complete interlock logic avoids manual operation errors.

Unique tilting distillation kettle structure, operators can dump solid paint & ink residues quickly without manual shoveling. Matched HSD high-temperature recovery bags simplify slag removal, reduce labor intensity and solvent secondary volatilization.

Optimized heat insulation layer around heating tank minimizes heat loss; segmented PID temperature adjustment avoids continuous full-power operation. Compare with traditional open heating recovery machines, power consumption reduces over 25% in same working cycle.

Each TE-90L unit finishes full assembly, aging test and recovery performance inspection in our 3,500㎡ factory detection workshop before shipment. No welding, complicated pipeline assembly required on client site, only power and cooling pipe connection needed. Shorten installation period and eliminate on-site assembly errors.

Chinese & English dual operation interface, support custom distillation temperature curve for different solvents (IPA, toluene, butanone, gun wash thinner). Timed recovery shutdown function realizes unattended off-work operation.

• Automotive & Furniture Spraying Industry: Recycle gun wash thinner, paint cleaning solvent, mixed diluent
• Printing & Packaging Industry: Recycle plate washing solvent, ink cleaning agent, ester mixed solvent
• Electronics & Optical Industry: Recycle IPA, cleaning alcohol, PCB board washing solvent
• Coating & Paint Manufacturing: Recycle color mixing tank cleaning solvent, hydrocarbon solvent oil
• Hardware & Plastic Surface Treatment: Recycle degreasing solvent, spray gun cleaning liquid

• Aromatic solvents: Toluene, xylene, trimethylbenzene, solvent oil
• Ketone solvents: Acetone, MEK, methyl isobutyl ketone
• Alcohol solvents: Isopropanol, ethanol, butanol
• Ester mixed solvents: Gun wash water, banana oil, thinner, washing agent
• Halogenated solvents: Dichloromethane, trichloroethylene
• NMP & new industrial cleaning solvents

Factory Overview
JBETEP is a professional one-stop supplier of explosion-proof solvent recovery equipment. We operate a company-owned factory in Chongqing and an OEM production facility in Guangdong, covering a total area of ​​over 3,500 square meters. With more than 15 years of experience in the R&D and manufacturing of industrial solvent recovery equipment, our products are exported to Southeast Asia, Europe, Central Asia, and Latin America. All equipment undergoes rigorous internal no-load testing and safety inspections before leaving the factory and holds comprehensive explosion-proof (Ex) and CE certifications.

Comprehensive Lifecycle Services
Pre-sales: Free solvent sample testing, customized distillation process solutions, and technical consultation.
In-sales: Supply of standard models with optional add-ons such as feed pumps, water-cooling units, and other customized configurations.
Post-sales: On-site commissioning and operation training available upon request; lifetime free remote technical support; local after-sales partners located in Vietnam, Taiwan, Guangdong, and Zhejiang.

• High-temperature resistance: Withstands operating temperatures up to 200°C without melting or rupturing during the distillation cycle.
• Solvent resistance: Resistant to xylene, isopropyl alcohol (IPA), methyl ethyl ketone (MEK), thinners, NMP, esters, and mixed cleaning solvents; chemically inert.
• High toughness and tear resistance: Thickened film construction supports heavy solid sludge without tearing during lifting.
• Disposable and easy to use: Simple to install like a trash bag; enables one-step residue removal, significantly saving labor time.
• Comprehensive vessel protection: Prevents carbon buildup and scratches on the stainless steel distillation vessel, extending equipment service life.
• Compatible with the full product range: Custom sizes available for TE20/60/90/125/150/300/450 series solvent recovery machines.
