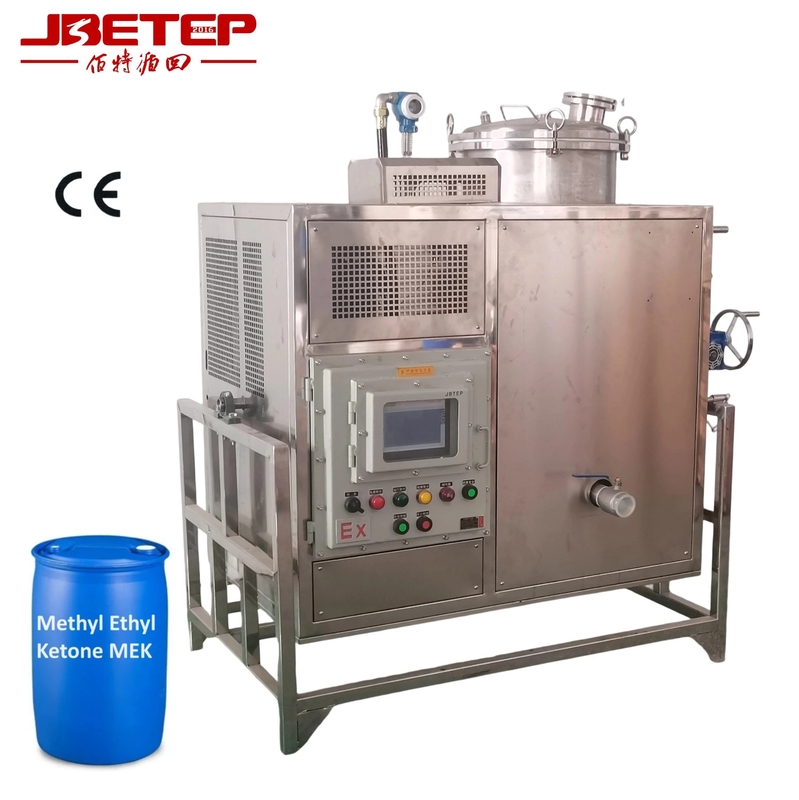

Features Of Explosion Proof 150L Ethanol And Other Solvent Recovery Equipment

Features of explosion-proof 150L ethanol and other solvent recovery equipment

Product Introduction

This equipment is designed for safe recovery of flammable and explosive organic solvents such as and ethanol.
The 150L capacity meets industrial needs. The core adopts motors, electrical components and whole machine structures with international explosion-proof certification (such as Ex & CE), which effectively eliminates the risk of spark ignition. Equipped with multiple safety interlocks, nitrogen protection and a complete pressure relief system, it ensures safe and reliable operation in hazardous environments such as spraying, electronics, and chemicals.
It can achieve efficient recovery of solvents and significantly reduce the cost and safety risks of hazardous waste treatment. It is an essential equipment that takes into account both safety and benefits.

Workflow:

1. Add the solution that needs to be recycled.

2. The heater heats the hot kerosene in the interlayer of the recycling barrel; the hot kerosene transfers heat to the waste solution in the recycling barrel, causing the solution to heat up, and the organic solvent is converted from liquid to vapor after being heated;

3. The vapor solvent is liquefied and flows out through the cooling system; the separated clean solvent flows into the recycling container.

4. Clean up the remaining residue.

In this way, the organic solvent is recycled and reused through distillation and cooling, achieving the purpose of resource reuse.

Product Parameters

Product Features

1. Explosion-proof design: The whole machine is explosion-proof, and all electronic control components are explosion-proof. Stainless steel, etc.
2. Capacity and specifications: 150L capacity, using heat transfer oil indirect heating distillation method to vaporize waste , ethanol and other solvents and then condense them to obtain clean solvents.
3. Solvent recovery efficiency: The comprehensive recovery rate reaches more than 80%, and the waste solvent recovery reaches more than 90%;
4. Safety features: In addition to the explosion-proof design, the system is also equipped with multiple protection functions such as automatic shutdown, temperature protection control, and pressure protection control.
5. Compliance: EX & CE explosion-proof certification.
6. Operation and maintenance: Simple operation, one-button operation after the initial setting is completed, no professional operation is required, and the later maintenance cost is low.
7. Application field: The equipment is mainly suitable for enterprises or manufacturers that produce organic solvents such as chemical, pharmaceutical, electronic, laboratory, spraying, coating, new material research and development and production.

The solvents suitable for recycling by our equipment are:

1. Aromatic solvents:

Toluene, xylene, trimethylbenzene, solvent oil, etc.;

2. Ketone solvents:

, butanone (MEK), methyl isobutyl ketone, etc.;

3. Alcohol solvents:

Butanol, isopropyl alcohol (IPA), ethanol, isobutyl alcohol, etc.

4. Chlorinated solvents:

Dichloromethane, chloroform, trichloroethylene, etc.

5. Mixed solvents:

Gun washing water, banana water, mold washing water, stain remover, thinner, anti-whitening water, board washing water, car washing water, etc.

6. New solvents:

(NMP) N-methylpyrrolidone, etc.

Waste liquid VS recovery machine solvent VS residue

Which industries do we serve?

Spraying and roller coating companies for automobiles, auto parts, decorative materials, laptop accessories, furniture and home appliances;

Electronics, stamping, display, optics, photovoltaics and other production enterprises that use solvents as cleaning processes;

Paint, ink, coating chemical, printing, painting and other production and processing industries;

Application fields that produce waste solvents such as scientific research institutions and university laboratories; and other fields that use organic solvents as cleaning agents.

Factory

Qualifications

Recycle Dirty Solvents. Save Costs. Go Green.

Sustainable Solvent Recycling Solutions: Maximize Efficiency, Minimize Waste

As a leading manufacturer of industrial-grade solvent recycling equipment, we empower businesses to transform waste into value. Our cutting-edge systems enable safe, efficient solvent recovery - slashing operational costs while advancing your sustainability goals.

Why Choose Our Solvent Recycling Systems?
✓ Proven ROI - Reduce solvent purchases by up to 95%
✓ Eco-Compliance - Cut hazardous waste disposal by 90%+
✓ Premium Safety - ATEX-compliant designs with explosion-proof options
✓ Energy Smart - Patented energy-recovery technology lowers operating costs

End-to-End Partnership - From Consultation to Lifetime Support

1. Consultation & Testing
→ Free technical assessment
→ On-demand sample testing & trial runs

2. Tailored Solution Design
→ Customized equipment specification
→ Risk-minimized configuration planning

3. Seamless Implementation
→ Precision manufacturing
→ Global logistics & delivery

4. Operational Excellence
→ On-site installation & commissioning
→ Comprehensive operator training

5. Lifetime Partnership
→ 24/7 remote technical support
→ Preventive maintenance programs
→ Critical spare parts network

Engineered for Your Industry:
• Automotive • Pharmaceuticals • Electronics • Printing • Coatings • Chemical Processing

Request Your Free Recovery Analysis
Let our engineers evaluate your solvent stream and design your optimal recycling solution.

Stop Wasting Money on New Solvent! See How Much You Can Save!
