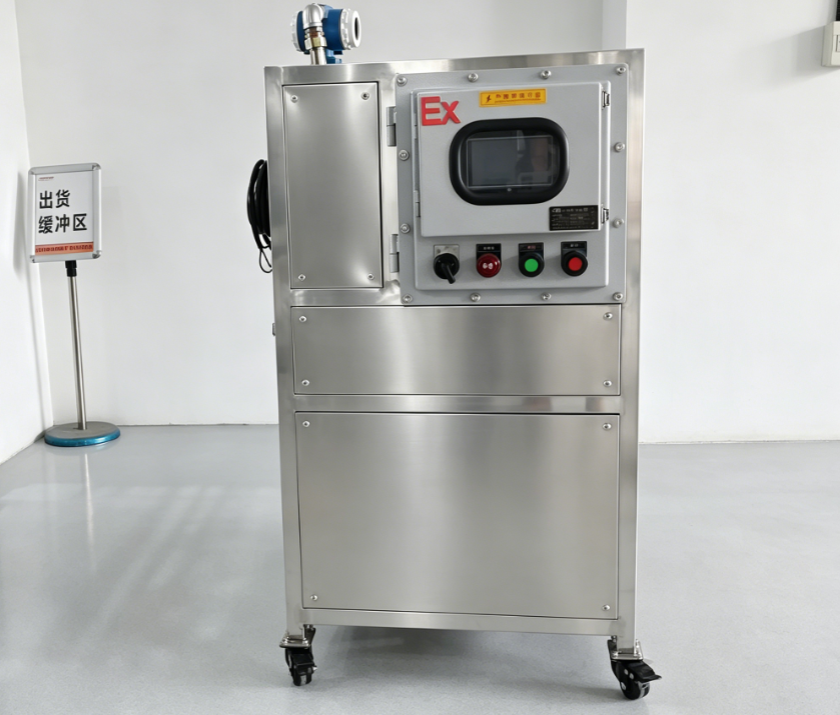

TE‑20 20L Compact Explosion‑Proof Solvent Recovery Machine
  • TE‑20 20L Compact Explosion‑Proof Solvent Recovery Machine
  • TE‑20 20L Compact Explosion‑Proof Solvent Recovery Machine
  • TE‑20 20L Compact Explosion‑Proof Solvent Recovery Machine
  • TE‑20 20L Compact Explosion‑Proof Solvent Recovery Machine

TE‑20 20L Compact Explosion‑Proof Solvent Recovery Machine

Product Details:
Place of Origin: Chongqing, China
Brand Name: JBETEP
Certification: Ex&CE
Model Number: TE-20
Document: JBETEP Solvent Recovery Mac...g).pdf
Detail Information
Place of Origin:
Chongqing, China
Brand Name:
JBETEP
Certification:
Ex&CE
Model Number:
TE-20
Document:
JBETEP Solvent Recovery Mac...g).pdf
Product Name:
Solvent Recovery Machine/Solvent Recovery Unit/Solvent Regeneration Equipment/Distillation Equipment
HS Code:
50069608FP
Daily Processing Capacity:
Estimated 20L-60L
Processing Time:
Average 2-2.5 Hours
Maximum Heating Power:
2KW
Source (V):
220V
Exterior Dimensions Of The Host（MM）:
850*600*1200
The Size Of The Venue Is Required（M）:
3*3*3
Highlight:

High Light

Highlight:

20L explosion-proof solvent recovery machine

,

compact solvent recovery machine

,

TE-20 solvent recovery machine

Trading Information
Minimum Order Quantity:
1 set
Price:
3855-55587 USD
Packaging Details:
Wooden box (vacuum packaging optional)
Delivery Time:
5-8 working days
Payment Terms:
T/T
Supply Ability:
300 sets
Product Description
TE-20 20L Compact Explosion-Proof Solvent Recovery Machine
Product Overview

Batch-type distillation unit for small-volume waste solvent recycling, designed to reduce solvent procurement and hazardous-waste disposal costs by up to 80-90%.

The TE-20 solvent recovery machine employs thermal-oil indirect heating distillation to vaporize contaminated waste solvent and condense the vapor into clean, reusable solvent. Featuring whole-unit explosion-proof construction suitable for flammable-solvent workshops, this compact system supports 24-hour continuous intermittent operation with PLC PID intelligent control.

TE-20 Solvent Recovery Machine TE-20 Technical Diagram
Technical Specifications
Specification Unit Technical Data
Main unit model - TE-20
Explosion-proof Grade - ExdbIIBT3/T4Gb
Feed Capacity L ≤18
Maximum Heating Power kW 2 kW
Power Supply V/Hz 220V (customizable for 50/60Hz)
Average Processing Time h 2 (continuous 24h operation supported)
Weight KG ≈100
Overall Dimensions (L*W*H) mm 850*600*1200
Required Floor Space (L*W*H) m 3*3*3
Daily Output (12h) L 20-60L
Cooling Method - Air-cooled / Water-cooled
Material - Solvent-contact parts: SUS304 or SUS316 stainless steel; Non-solvent-contact frame & sheet metal parts: SUS201 stainless steel
Certifications - CE/EX
Control System - PLC Control
Recovery Efficiency (%) 95
Core Advantages
  • Full Explosion-Proof Structure: All electric components feature flame-proof design with multi-layer safety interlocks including over-temperature alarm & shutdown, over-pressure auto-relief, independent temperature protection, and fool-proof safety logic for flammable-solvent working areas.
  • Dual-grade Stainless-steel Construction: Solvent-contact chamber and pipeline utilize 304/316 stainless steel against solvent corrosion; outer frame & sheet-metal panels use cost-effective SUS201 stainless steel, balancing performance and investment cost.
  • PLC PID Intelligent Automatic Operation: One-click startup, timed shutdown, and abnormal fault alarm. No full-time operator required; supports unattended batch-cycle work with Chinese-English touch-screen interface for global operators.
  • High Recovery Rate & Significant Cost Saving: Typical recovery efficiency ≥95%. Clean recovered solvent can be directly reused. Solid/semi-solid residue volume shrinks drastically, lowering hazardous-waste outsourcing fees by over 90%.
  • Compact Footprint & Easy Maintenance: Small floor space ideal for small-scale factories and laboratory environments. Simple mechanical structure minimizes routine maintenance. Equipped with load-bearing castors for easy relocation between working positions.
Industry Solutions

Industry Pain Points Solved:

  • High cost of purchasing fresh organic solvent for small-batch production
  • Expensive third-party hazardous-waste disposal for small-quantity waste solvent
  • VOC pollution risk when waste solvent is directly discharged or evaporated
  • Safety hazards caused by flammable waste solvent storage in labs & small workshops
  • Lack of compact explosion-proof recycling equipment for pilot-plant & R&D-lab scenarios

Solution: TE-20 20L solvent recycler regenerates waste solvent on-site, turning hazardous waste into reusable raw material while complying with local environmental & safety regulations.

Applicable Industries
  • Automotive & auto-parts small spray-painting workshops (gun-washing solvent recovery)
  • Furniture, hardware & decorative-material spraying enterprises
  • Electronics, optics, photovoltaic & R&D laboratory cleaning-solvent recycling
  • Printing, ink & coating small-batch production factories
  • Research institutes, university labs, pilot test workshops
  • 3D-printing post-processing cleaning solvent recycling
Schematic Diagram
TE-20 Solvent Recovery Machine Schematic Diagram
Recoverable Solvent Types
  • Aromatic solvents: Toluene, xylene, solvent naphtha
  • Ketone solvents: Acetone, MEK, MIBK
  • Alcohol solvents: Ethanol, IPA isopropyl alcohol, butanol
  • Chlorinated solvents: Methylene chloride, trichloroethylene
  • Mixed-waste solvent: Gun-wash liquid, thinner, banana oil, board-washing liquid
* Prohibited Materials (DO NOT RECYCLE)

Do NOT process waste liquid containing nitrocellulose, strong acid / strong alkali, peroxide, ammonia water or thermally-decomposable substances to avoid safety risks.

Before and After Waste Solvent Recycling
Comparison of waste solvent before and after recycling
Optional Accessories & Customization
  • Water-cooled condenser for low-boiling-point solvents
  • PTFE/PA high-temperature slag bags for fast residue removal
  • Feed diaphragm pump for automatic feeding
  • Chiller Set
  • Vacuum negative pressure storage unit
Frequently Asked Questions
Q1: What power supply does TE-20 require?
A: Standard 220V single-phase power; we support custom-made voltage for different countries.
Q2: Can this machine run 24 hours continuously?
A: It supports intermittent 24-h batch-cycle operation. Rest interval between batches is required for safety cooling.
Q3: What is the payback period?
A: For workshops generating 20-60L waste solvent per day, payback period normally ranges 6-12 months, depending on local solvent price and hazardous-waste disposal fees.
Q4: What after-sales support do you offer?
A: Provide operation manual, operation video, remote technical guidance; spare-parts supply; on-site commissioning available upon request. Main structure long-term quality guarantee.
Q5: Can you change material grade?
A: Yes. Wetted parts can upgrade to full SUS316; outer sheet metal can upgrade to 304 if required.
