| Place of Origin: | Chongqing, China |
| Brand Name: | JBETEP |
| Certification: | Ex&CE |
| Model Number: | TE-20 |
| Document: | JBETEP Solvent Recovery Mac...g).pdf |
Are you facing challenges with waste organic solvent disposal? Large volumes of contaminated waste solvents are continuously generated in production processes including coating, ink, roll coating, pharmaceutical, and precision cleaning operations.
The JBETT TE-20L mobile explosion-proof solvent distillation unit recycles waste solvent on-site. The purified recovered solvent can be reused in production lines, significantly reducing new solvent procurement and hazardous waste disposal costs.
Chongqing JBETT Environmental Technology is a professional manufacturer engaged in R&D, production, and sales of solvent recovery machines and distillation bags.

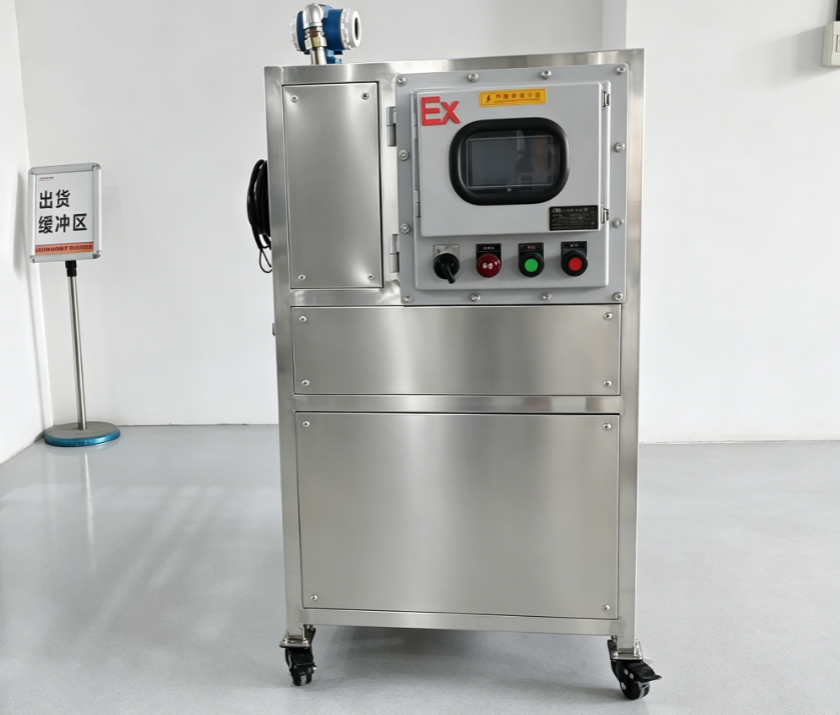

The TE-20L vertical mobile explosion-proof solvent distillation unit features full stainless steel construction with universal casters. It can be flexibly moved to waste liquid collection points on production lines for on-site waste solvent treatment.
Utilizing indirect thermal oil heating distillation principle: waste organic solvent is vaporized and then condensed to obtain clean recycled solvent. The entire machine is explosion-proof, with all electrical components explosion-proof certified. Equipped with PLC control system supporting Chinese and English HMI interface.
Multiple safety interlock protections are integrated: over-temperature and over-pressure alarm and shutdown, timed/temperature automatic shutdown, fault alarm, static bonding protection, with optional nitrogen blanketing to avoid explosion risks.
Recovered solvent features stable quality for direct reuse. Distillation residue becomes solid or semi-solid with volume reduction over 90%, significantly reducing hazardous waste transportation frequency and cost. Features easy operation, low power consumption, and simple maintenance.
Equipped with locking swivel casters for flexible relocation across production lines; no fixed installation required.
Explosion-proof housing and electrical control system; suitable for recovering flammable and explosive solvents.
Chinese/English touchscreen interface; one-touch start and automatic operation; supports scheduled or temperature-based shutdown.
Interlock shutdown for over-temperature and over-pressure conditions; static electricity protection.
Corrosion-resistant and durable; suitable for various organic solvents; easy to clean.
Reduces new solvent procurement costs by up to 80% and hazardous waste disposal costs by over 90%.
Chongqing JBETT (original manufacturer); customizable features available; support for export certification compliance.
| Specification | Unit | Technical Data |
|---|---|---|
| Main unit model | - | TE-20 |
| Explosion-proof Grade | - | ExdbIIBT3/T4Gb |
| Feed Capacity | L | ≤18 |
| Maximum Heating Power | kW | 2 kW |
| Power Supply | V/Hz | 220V (customizable for 50/60Hz) |
| Average Processing Time | h | 2 (continuous 24h operation supported) |
| Weight | KG | ≈100 |
| Overall Dimensions (L×W×H) | mm | 850*600*1200 |
| Required Floor Space (L×W×H) | m | 3×3×3 |
| Daily Output (12h) | L | 20-60L |
| Cooling Method | - | Air-cooled / Water-cooled |
| Material | - | Solvent-contact parts: SUS304 or SUS316 stainless steel; Non-solvent-contact frame & sheet metal parts: SUS201 stainless steel |
| Certifications | - | CE/EX |
| Control System | - | PLC Control |
| Recovery Efficiency | (%) | 95 |
Surface coating, ink & paint manufacturing, roll coating & laminating, printing, precision metal cleaning, pharmaceutical intermediate, laboratory, adhesive, electronic cleaning and other industries.
Acetone, anhydrous ethanol, isopropanol, ethyl acetate, toluene, xylene, n-heptane, paint thinner, gun washing solvent, hydrocarbon cleaning agents and other flammable organic solvents.
Manufactured by Chongqing JBETT Environmental Protection. Made of modified PA nylon material, these distillation bags are specially designed for solvent recovery machines. Heat resistance up to 200℃, excellent chemical resistance against acetone, ethanol, ethyl acetate, heptane, paint thinner and other organic solvents.
The bag lines the distillation chamber during the recovery process. After distillation, solid residues can be removed simply by taking out the bag. No manual scrubbing of the distillation tank required, reduces downtime and protects your equipment. Sizes available for 20L-300L(50μm-130μm) and custom sizes.
