| Place of Origin: | Chongqing, China |
| Brand Name: | JBETEP |
| Model Number: | flat rectangular type (main);(customizable) |
Anti‑Static Polyamide Distillation Bags 50μm-130μm(Customizable)
Anti‑static distillation bags are high‑performance polyamide‑based liner film for industrial solvent distillation machines. Surface resistance 10⁹‑10¹⁰Ω, melting temperature 200°C. It fits inside your recovery drum, holds waste solvent during distillation, and lets you remove all sludge residues in one go without tedious barrel scrubbing. Compatible with alcohol, acetone, isopropanol, toluene, xylene, paint thinner and ink‑based waste solvents. Custom dimensions & thickness on request.
Key Benefits
1. Controlled Anti‑Static Performance:Surface resistance 10⁹‑10¹⁰ Ω, safely dissipates static charges generated by flammable volatile solvents, lowering ignition risks during distillation operations.
2.High Heat & Chemical Compatibility:Melting point reaches 200℃. Resists swelling & degradation from most common organic industrial solvents.
3. Superb Mechanical Toughness:High tensile strength and extreme elongation performance, strong puncture‑resistance to prevent leakage under heavy solvent and solid sludge load. Linear thermal shrinkage ≤1%, maintains shape stability under heating.
4.Boost Operational Efficiency:Eliminate heavy manual scrubbing of dirty recovery barrels. Remove residues entirely with the bag, shorten equipment downtime.
5.Flexible Customization:Custom thickness, width and length according to your distillation drum’s actual dimension.
Product Parameters
| Item | Specification |
| Product Name | PA Nylon Distillation Bags |
| Raw Material | Polyamide (PA / Nylon) |
| Material Thickness | 60μm ~ 130μm (customizable) |
| Structure Type | flat rectangular type (main);(customizable) |
| Key Dimension | Bag body diameter, effective working length, material thicknessFlat bag: Length(mm) × Width(mm) × Thickness(μm) |
| Max Continuous Working Temp | Up to 200℃ |
| Feature | Solvent‑resistant, high heat‑resistance, easy residue disposal |
| Custom Service | Custom diameter & effective working length according to client machine inner chamber |
Note: Effective working length refers to vertical distance from drum bottom to lid sealing cross‑section of recovery machine, not total bag length. Please provide machine inner chamber size for accurate size recommendation.
Specifications
| Model | Size / Thickness | Compatible Machine Model |
| HSD20 | 540mm × 50μm × 650mm | For TE-20 and similar models |
| HSD40 | 650mm × 50μm × 650mm | For TE-40 and similar models |
| HSD60 | 650mm × 50μm × 860mm | For TE-60 and similar models |
| HSD90 | 730mm × 50μm × 950mm | For TE-90/80 and similar models |
| HSD125 | 750mm × 50μm × 1250mm | For TE-125/100 and similar models |
| HSD150 | 850mm × 50μm × 1200mm | For TE-150/125 and similar models |
| HSD250/300 | 1000mm × 60μm × 1500mm | For TE-300/250/200 and similar models |
| Custom | Custom width, length & thickness | Fit for most solvent recovery machines |
Alcohol, acetone, isopropanol (IPA), toluene, xylene, paint thinner, petroleum‑based solvent, waste ink solvent.
How to use
1.Fully fit the anti‑static recovery bag inside your solvent‑recovery barrel
2.Pour waste industrial solvent into the bag
3.Operate solvent‑recovery machine following your site SOP
4.After distillation completes, take the whole bag out of the drum
5.Dispose bag and residues following local hazardous‑waste regulations
Important note: Polyamide material dehydrates under dry conditions (especially winter). Pre‑humidification treatment is required before use. Please check storage & handling section below.
Target Industries
Paint & coating manufacturing
Printing & ink production
Petro‑chemical workshops
Adhesive & resin processing
Fine chemical & pharmaceutical manufacturing
General industrial waste‑solvent distillation facilities
Not suitable for concentrated strong acid and strong‑alkali media. Send us your solvent list for compatibility evaluation.
Application Scope
Suitable for distillation treatment of various industrial waste organic solvents. Widely used for waste solvent from automobile painting, coating industry, perfume production, 3D‑printing, chemical materials, printing and other manufacturing sectors.
Compatible Equipment
Our distillation bags are compatible with most solvent recovery and distillation equipment on the global market:
JBETT TE series solvent recovery machines (TE-20, TE-40, TE-60, TE-90, TE-125, TE-150, TE-150PLUS, TE-300, and other models)
Solvent distillation and recovery equipment from third-party brands
Customization based on your equipment's internal dimensions is available: simply provide the inner barrel diameter and effective depth, and we will recommend the appropriate distillation bag.
Our distillation bags are anti-static and suitable for both non-explosion-proof and explosion-proof operating environments.
Custom & Order Information
OEM & ODM support: Custom thickness, bag width & length to match your distillation tank dimension
Packing: Export‑grade carton packaging
MOQ: Negotiable based on final specifications
Sample service: Testing samples available upon request

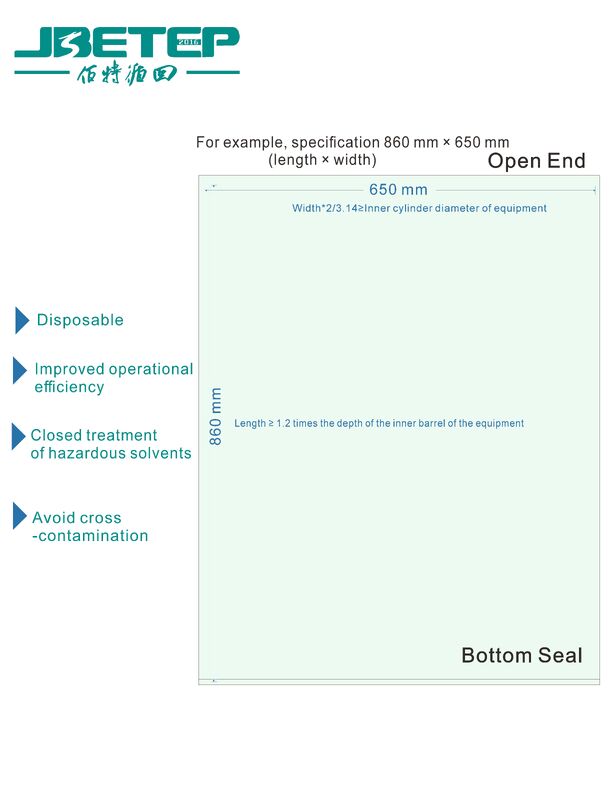

How To Get Correct Distillation Bag Size
To ensure a perfect fit and avoid any compatibility issues, please provide the following information:
1. Clear photos of the original distillation bag (including an overall view and a close-up of the opening area);
2. Key dimensions: bag diameter, effective length, and material thickness; Length (mm) × Width (mm) × Thickness (μm) (Is the opening on the long side or the wide side?);
3. Required temperature resistance;
4. Chemical composition of the solvent to be processed;
If you do not have an original spare bag for reference, please measure the equipment's inner chamber and provide the following two sets of data:
(1) Inner chamber diameter;
(2) Effective inner chamber depth: measure the distance from the bottom of the chamber to the sealing surface of the lid (not the top edge of the tank).
Upon receipt of these specifications, we will confirm the appropriate distillation bag size for you.
Frequently Asked Questions
H3: Q1: What is the maximum working temperature for 50μm‑100μm distillation bags?
A: The melting temperature is 200℃. Please keep actual operating temperature below this value according to your solvent‑distillation machine setting.
H3: Q2: Why is pre‑humidification required?
A: Polyamide material loses moisture under dry air and becomes brittle, raising tearing risk. Controlled humidification restores original film toughness.
H3: Q3: Can these distillation bags work with my existing solvent‑distillation unit?
A: Yes. Please share inner diameter and height of your distillation barrel. We can recommend exact bag dimension for you.
H3: Q4: Which chemicals cannot be used with these bags?
A: Concentrated strong acid and strong alkali are outside recommended scope. Submit your solvent composition list and we will perform compatibility assessment for you.
About Our Manufacturer
Chongqing JBETT Environmental Protection Technology Co., Ltd.
We are a manufacturer headquartered in China, specializing in solvent recovery equipment/solvent distillation machines and distillation consumables. We provide solvent recovery equipment and related accessories (distillation bags) services to industrial customers worldwide.
