| Place of Origin: | Chongqing, China |
| Brand Name: | JBETEP |
| Model Number: | flat rectangular type (main);(customizable) |
High‑Temperature PA Nylon Distillation Bags for Solvent Recovery Machine
Our PA Nylon Distillation Bags are consumable spare parts specially designed for solvent recovery distillation machines. Made of premium polyamide material, these distillation bags feature outstanding high‑temperature resistance and excellent chemical tolerance against various industrial waste solvents. Custom sizes are available to achieve perfect fitting for different distillation chamber dimensions, effectively filtering residues during solvent distillation and simplifying waste‑residue cleaning work.
Product Parameters
| Item | Specification |
| Product Name | PA Nylon Distillation Bags |
| Raw Material | Polyamide (PA / Nylon) |
| Material Thickness | 60μm ~ 130μm (customizable) |
| Structure Type | flat rectangular type (main);(customizable) |
| Key Dimension | Bag body diameter, effective working length, material thicknessFlat bag: Length(mm) × Width(mm) × Thickness(μm) |
| Max Continuous Working Temp | Up to 200℃ |
| Feature | Solvent‑resistant, high heat‑resistance, easy residue disposal |
| Custom Service | Custom diameter & effective working length according to client machine inner chamber |
Note: Effective working length refers to vertical distance from drum bottom to lid sealing cross‑section of recovery machine, not total bag length. Please provide machine inner chamber size for accurate size recommendation.
Specifications
| Model | Size / Thickness | Compatible Machine Model |
| HSD20 | 540mm × 50μm × 650mm | For TE-20 and similar models |
| HSD40 | 650mm × 50μm × 650mm | For TE-40 and similar models |
| HSD60 | 650mm × 50μm × 860mm | For TE-60 and similar models |
| HSD90 | 730mm × 50μm × 950mm | For TE-90/80 and similar models |
| HSD125 | 750mm × 50μm × 1250mm | For TE-125/100 and similar models |
| HSD150 | 850mm × 50μm × 1200mm | For TE-150/125 and similar models |
| HSD250/300 | 1000mm × 60μm × 1500mm | For TE-300/250/200 and similar models |
| Custom | Custom width, length & thickness | Fit for most solvent recovery machines |
How to use
Application Scope
Suitable for distillation treatment of various industrial waste organic solvents. Widely used for waste solvent from automobile painting, coating industry, perfume production, 3D‑printing, chemical materials, printing and other manufacturing sectors.
Compatible Equipment
Our distillation bags are compatible with most solvent recovery and distillation equipment on the global market:
JBETT TE series solvent recovery machines (TE-20, TE-40, TE-60, TE-90, TE-125, TE-150, TE-150PLUS, TE-300, and other models)
Solvent distillation and recovery equipment from third-party brands
Customization based on your equipment's internal dimensions is available: simply provide the inner barrel diameter and effective depth, and we will recommend the appropriate distillation bag.
Our distillation bags are anti-static and suitable for both non-explosion-proof and explosion-proof operating environments.
Key Advantages
1.Excellent high‑temperature resistance: withstand high temperature during solvent distillation process, long service life under normal working condition.
2.Strong solvent compatibility: resist corrosion from different organic solvents, avoid material swelling or breakdown.
3.Customized dimension solution: avoid dimension mismatch risk. We suggest measuring machine inner chamber instead of only relying on old bag size.
4.Easy operation & clean‑up: after distillation cycle completes, take out distillation bag directly to dispose solid residues, reduce manual cleaning workload for distillation drum.
5.Strict quality control: every batch comes with material performance test document for customer customs clearance and site safety audit.

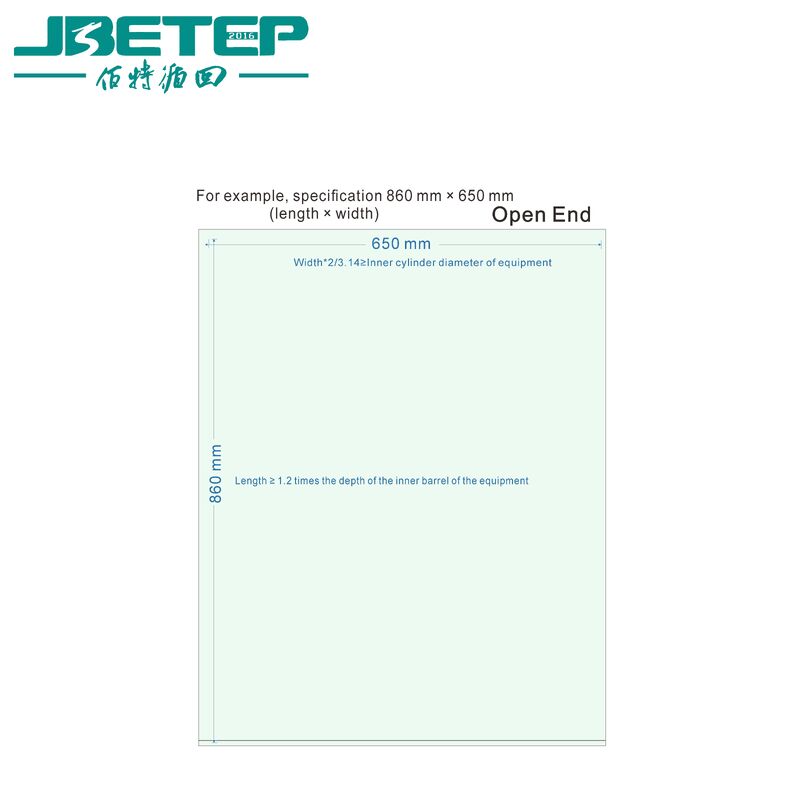

How To Get Correct Distillation Bag Size
To ensure a perfect fit and avoid any compatibility issues, please provide the following information:
1. Clear photos of the original distillation bag (including an overall view and a close-up of the opening area);
2. Key dimensions: bag diameter, effective length, and material thickness; Length (mm) × Width (mm) × Thickness (μm) (Is the opening on the long side or the wide side?);
3. Required temperature resistance;
4. Chemical composition of the solvent to be processed;
If you do not have an original spare bag for reference, please measure the equipment's inner chamber and provide the following two sets of data:
(1) Inner chamber diameter;
(2) Effective inner chamber depth: measure the distance from the bottom of the chamber to the sealing surface of the lid (not the top edge of the tank).
Upon receipt of these specifications, we will confirm the appropriate distillation bag size for you.
Packaging and Shipping
Standard company cartons or neutral export packaging are used. Distillation bags are supplied as consumable accessories. They can be shipped separately or bundled with the solvent recovery machine. Relevant customs clearance documents are available, including the Commercial Invoice (CI), Packing List (PL), Certificate of Origin (CO), Safety Data Sheet (SDS), and material test reports.
